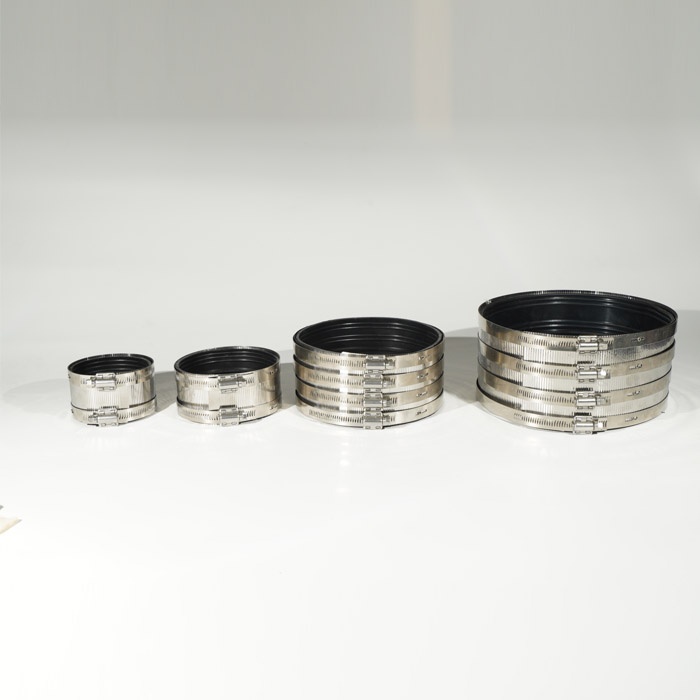

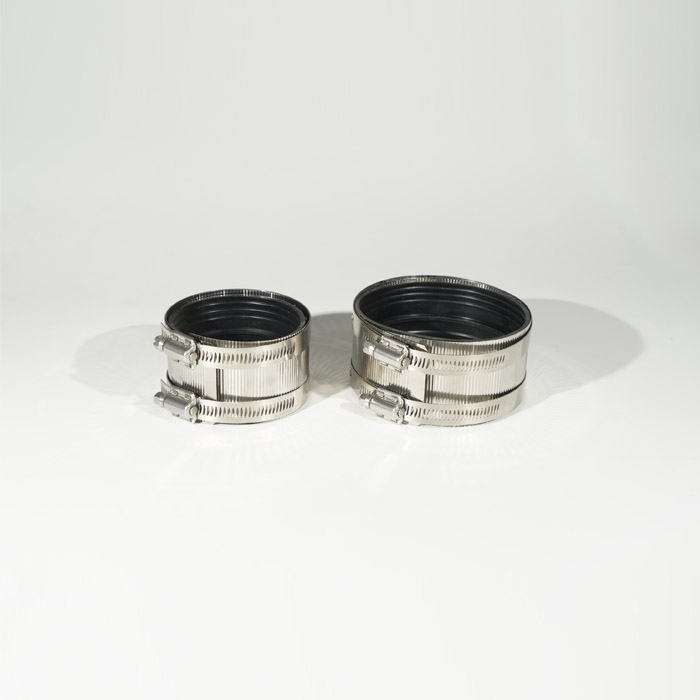

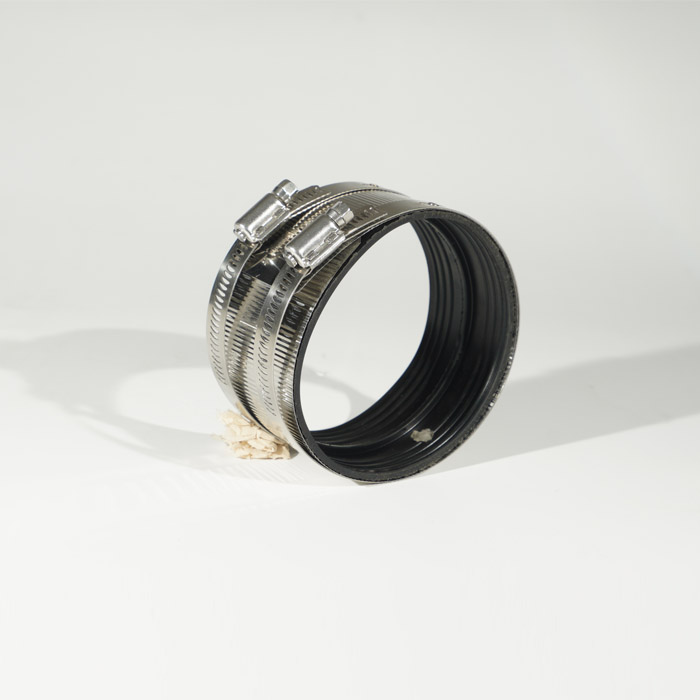

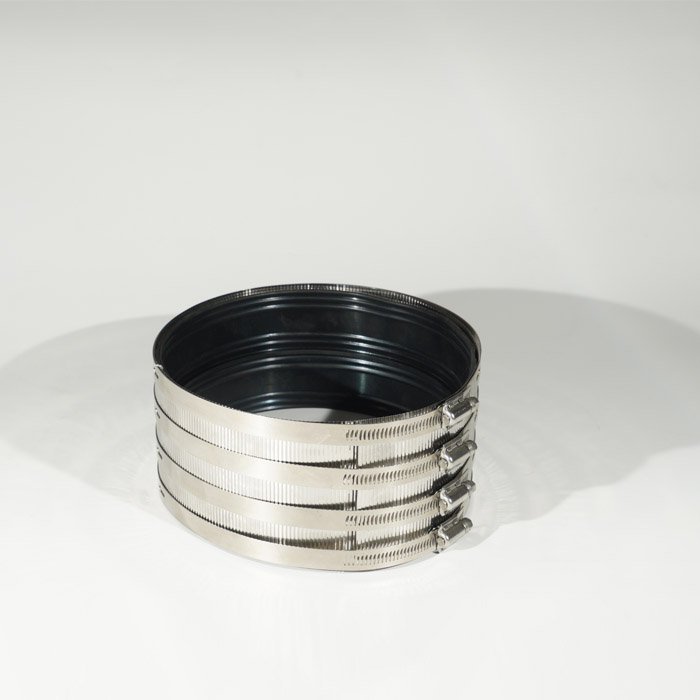

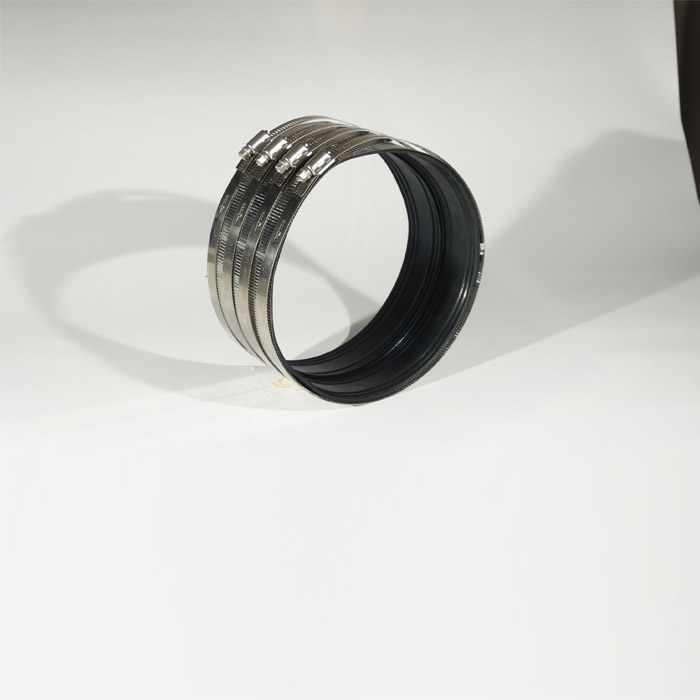

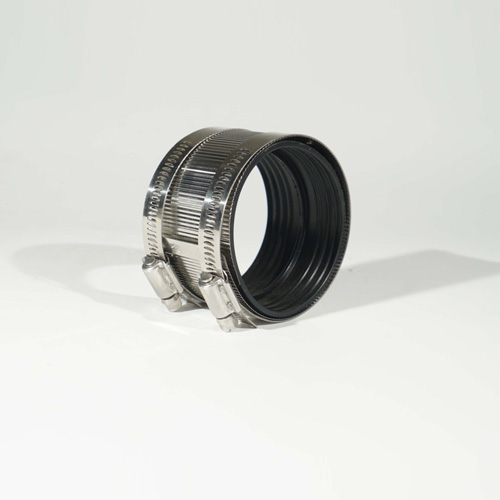

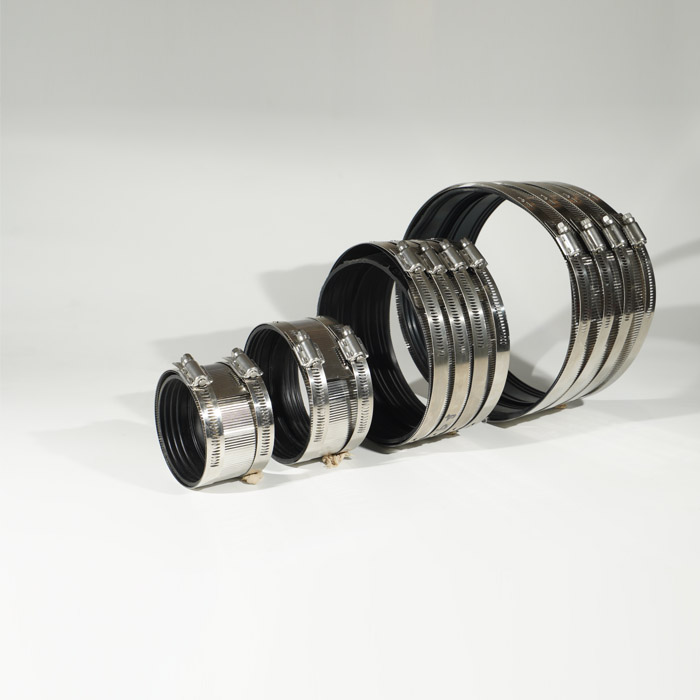

Flexible no-hub rubber lining stainless steel type A coupling hose pipe clamp

PUX No-Hub Couplings are designed & manufactured to replace less efficient hub & spigot material & connect no hub pipe & fitting in drain, waste & vent applications.PUX Coupling clamps are available in various sizes to best suit the customer applications.Also known as Chemical Resistant Couplings.

Model NO.:2″-12″

applications:Drainage System

structure:Steel and Rubber

thickness of corrugated plate:0.18mm

width of corrugated plate(2″-4″):54mm/76mm/108mm

bandwidth:14mm

band thickness:0.65mm

packaging:ordinary carton
2″-4″：100pcs/carton
5″：75pcs/carton
6″：60pcs/carton
8″：30pcs/carton
10″：22pcs/carton
12″：20pcs/carton

Production Capacity:40000pcs/day

CONTACT NOW down load to pdf

Details

Tags

Key Features

- PUX No-Hub Coupling includes three components: a Specially beaded gasket, External metallic shield & worm drive clamp.
- Specially Beaded Gasket- It has an elastomeric compound with grooves and beads strategically positioned on its surface. When tightened, the metallic shield attaches to the grooves and beads of gasket to provide sealing pressure and secure coupling joint.
- External Metallic Shield- The shield adjusts as per variety of a pipes diameters and circumferences to eliminate leaks. The corrugations of metallic shield seals pressure on the gasket and pipe to provide a reliable & secure joint.
- Worm Drive Clamp- works on principle of Worm Gear action where gearing action between clean punched perforations & thread of Hex Head Screw enables tightening or loosening of clamp on the application.
- Heavy Duty Two-Piece housing construction of clamp makes coupling suitable for high torque applications.
- Floating Eyelet Design- The floating eyelet allow the band of clamp & metallic shield.
